James Watt

James Watt

James Watt, the eldest surviving child of eight children, five of whom died in infancy, of James Watt (1698–1782) and his wife, Agnes Muirhead (1703–1755), was born in Greenock on 19th January, 1736. His father was a successful merchant.

According to his biographer, Jennifer Tann: "James Watt was a delicate child and suffered from frequent headaches during his childhood and adult life. He was taught at home by his mother at first, then was sent to M'Adam's school in Greenock. He later went to Greenock grammar school where he learned Latin and some Greek but was considered to be slow. However, on being introduced to mathematics, he showed both interest and ability." (1)

At the age of nineteen he was sent to Glasgow to learn the trade of a mathematical-instrument maker. After spending a year in London, Watt returned to Scotland in 1757 where he established his own instrument-making business. Watt soon developed a reputation as a high quality engineer and was employed on the Forth & Clyde Canal and the Caledonian Canal. He was also engaged in the improvement of harbours and in the deepening of the Forth, Clyde and other rivers in Scotland. (2)

Newcomen Steam Engine

James Watt became very interested in the subject of steam power. In 1761 he got hold of a steam digester, a type of pressure cooker with a safety valve. It had been created by Denis Papin, a French mathematician. He looked at ways of improving the machine. He fixed an ordinary apothecary's syringe to the valve, and put a little piston inside it with a rod pointing out of the top. Between digester and syringe he fitted a steam cock which he could turn so that the steam either filled the syringe or escaped. (3)

Thomas Savery had also tried to improve Papin's machine. One of the major problems of mining for coal, iron, lead and tin in the 17th and 18th centuries was flooding. Miners used several different methods to solve this problem. These included pumps worked by windmills and teams of men and animals carrying endless buckets of water. Savery used Papin's idea of using a cylinder and a piston to design a pumping engine which incorporated two different ways of utilizing steam to generate power. Steam was pumped into a cylinder and then cooled so that a vacuum was formed and atmospheric pressure drew water up. (4)

On 25th July 1698 Thomas Savery obtained a patent for fourteen years. The patent contained no description of the machine, but in June 1699 it was shown to members of the Royal Society. Savery established a workshop at Salisbury Court, London. At this workshop, mine and colliery owners could see the engine demonstrated before purchase. However, the engine could not raise water from very deep mines. Another disadvantage was its tendency to cause explosions. (5)

In 1763 Watt was sent a steam engine produced by Thomas Newcomen to repair. Newcomen, an inventor from Dartmouth , had also attempted to improve on the machines produced by Papin and Savery. He eventually came up with the idea of a machine that would rely on atmospheric air pressure to work the pumps, a system which would be safe, if rather slow. The "steam entered a cylinder and raised a piston; a jet of water cooled the cylinder, and the steam condensed, causing the piston to fall, and thereby lift water." (6)

As Jenny Uglow has pointed out: "Newcomen's engines exploited basic atmospheric pressure, building on the way had been found to rush into a vacuum. A vacuum could be created by sucking air out of a closed vessel with a pump, but it could also be created by using steam." (7)

Newcomen and his partner, John Calley, produced their first steam engine in 1710. John Theophilus Desaguliers points out: "In the latter end of the year 1711 made proposals to draw the water at Griff, in Warwickshire; but their invention meeting not with reception... after a great many laborious attempts, they did make the engine work; but not being either philosophers to understand the reason, or mathematicians enough to calculate the powers and to proportion the parts, very luckily by accident found what they sought for." (8)

The steam-engine was set up next to the mine it was draining. It had a large, rocking overhead beam. From one end hung a chain which was attached to the top of a piston encased in a cylinder. According to Gavin Weightman, the author of The Industrial Revolutionaries (2007), Newcomen and Calley had "devised and brought to efficient working order was the first really reliable steam engine in the world". (9)

Following the undoubted success of this engine a number of others were built in which Newcomen himself was involved. They included collieries at Griff, Warwickshire (1711); Bilston, Staffordshire (1714); Hawarden, Flintshire (1715); Austhorpe, West Yorkshire (1715) and Whitehaven, Cumberland (1715). (10)

Although many mine-owners used Newcomen's steam-engines, they constantly complained about the cost of using them. The main problem with it was they used a great deal of coal and were therefore expensive to run. While putting it back into working order, Watt attempted to discover how he could make the engine more efficient. (11)

Watt later told his friend, the Glasgow engineer, Robert Hart: "I had gone to take a walk on a fine Sabbath afternoon. I passed the old washing-house. I was thinking upon the engine at the time and had gone as far as the Herd's house when the idea came into my mind, that as steam was an elastic body it would rush into a vacuum, and if a communication was made between the cylinder and an exhausted vessel, it would rush into it, and might be there condensed without cooling the cylinder." (12)

Watt worked on the idea for several months and eventually produced a steam engine that cooled the used steam in a condenser separate from the main cylinder. Watt calculated that this would produce a saving of fuel of around 75 per cent. It has been argued by Jennifer Tann that "Watt identified several problems, of which the wastage of steam during the ascent of the engine piston and the method of vacuum formation in which the system was cooled were two of the most fundamental. He therefore made a new model, slightly larger than the original, and conducted many experiments on it.... The theory of latent heat underpinned Watt's experiments on the separate condenser, in which the steam cylinder remained hot while a separate condensing vessel was cold." (13)

In April, 1765, James Watt wrote to James Lind about his invention. "I have now almost a certainty of the facturum of the fire-engine, having determined the following particulars: the quantity of steam produced; the ultimatum of the lever engine; the quantity of steam produced; the quantity of steam destroyed by the cold of its cylinder; the quantity destroyed in mine... mine ought to raise water to 44 feet with the same quantity of steam that there does to 32 (supposing my cylinder as thick as theirs). I can now make a cylinder of 2 feet diameter and 3 feet high only a 40th of an inch thick, and strong enough to resist the atmosphere... in short, I can think of nothing else but this machine." (14)

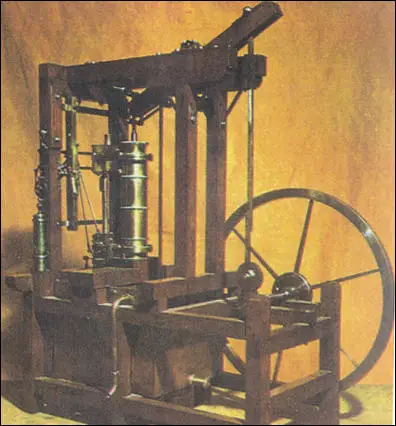

(Source 10) Model of a steam engine made by James Watt in 1769.
Model of a steam engine made by James Watt in 1769.

James Watt built an instrument-maker's model but the next stage involved producing a massive working engine made of brick and iron. Watt had no money for large-scale models and so he had to seek a partner with capital. Watt's friend, Joseph Black, introduced him to John Roebuck, the owner of Carron Ironworks near Falkirk in Scotland. He also owned nearby coal mines to provide fuel for his ironworks. (15)

Roebuck agreed and the two men went into partnership. Roebuck held two-thirds of the original patent (9th January 1769) in return for discharging some of Watt's debts. James Patrick Muirhead, the author of The Life of James Watt (1854) claims that Roebuck's made every effort to get Watt's machine into production as he was "ardent and sanguine in the pursuit of his undertakings". (16)

James Watt and Matthew Boulton

In March 1773 Roebuck became bankrupt. At the time he owed Matthew Boulton over £1,200. Boulton knew about Watt's research and wrote to him making an offer for Roebuck's share in the steam-engine. Roebuck refused but on 17th May, he changed his mind and accepted Boulton's terms. James Watt was also owed money by Roebuck, but as he had done a deal with his friend, he wrote a formal discharge "because I think the thousand pounds he (Boulton) he has paid more than the value of the property of the two thirds of the inventions." (17)

Roger Osborne, the author of Iron, Steam and Money: The Making of the Industrial Revolution (2013) has argued: "The two men instantly knew they could work together. Perhaps Watt saw that Boulton was the necessary complement to his own gloomy character - an energetic optimist who would carry him through his difficulties - while Boulton surely recognised the seriousness of Watt's character.... Watt was delighted not just by the prospect of investment hut especially by Boulton's personal enthusiasm." (18)

Boulton pointed out that before he would give Watt financial backing, he insisted that the 1769 patent, with only eight years to run, should be extended to twenty-five years. This meant petitioning the House of Commons. By 1775 the two men had their patent which gave them "the sole use and property of certain steam-engines of his invention, throughout the majesty's dominions." This prevented others from making steam-engines which contained improvements of their own. (19)

Under the terms of the partnership Watt assigned two-thirds of both property and the patent to Boulton. In return Boulton undertook to pay the expenses already incurred, to meet the costs of experiments, and to pay for materials and wages. The profits were to be divided in proportion to their shares. "It would be incorrect to stereotype Boulton as the entrepreneur and Watt as the inventor, for Boulton made many suggestions for improvements to the engine and Watt also had a good head for business. But there is no doubt that Boulton's flair for marketing was significant for the early success of the business." (20)

For the next eleven years Boulton's factory producing and selling Watt's steam-engines. These machines were mainly sold to colliery owners who used them to pump water from their mines. Watt's machine was very popular because it was four times more powerful than those that had been based on the Thomas Newcomen design.

One of their machines was installed at Whitbread's Brewery in London in 1775 to grind malt and raise the liquor, taking the place of a huge wheel which needed six horses at a time to turn it. The company was very pleased with the economic benefits of Watt's steam engine that had cost them £1,000. (21)

Rotary-Motion Steam Engine

Watt continued to experiment and in 1781 he produced a rotary-motion steam engine. Whereas his earlier machine, with its up-and-down pumping action, was ideal for draining mines, this new steam engine could be used to drive many different types of machinery. Richard Arkwright was quick to importance of this new invention, and in 1783 he began using Watt's steam-engine in his textile factories. (22)

The ironmaster John Wilkinson, was one of the first people to buy Watt's steam engine. He installed eleven engines at his Bradley ironworks by the 1790s and at least seven elsewhere. The partners depended heavily on Wilkinson for it was he who was capable of boring engine cylinders with greater accuracy than any other iron-founder. His boring machine has been called the first machine tool that was developed in the industrial revolution. (23)

Eric Hobsbawm has argued that James Watt's steam engine was "the foundation of industrial technology". (24) Arthur Young commented in his book, Tours in England and Wales (1791) about the impact that Watt had on Britain: "What trains of thought, what a spirit of exertion, what a mass and power of effort have sprung in every path of life, from the works of such men as Brindley, Watt, Priestley, Harrison, Arkwright.... In what path of life can a man be found that will not animate his pursuit from seeing the steam-engine of Watt?" (25)

(Source 1) James Watt by John Partridge (c. 1790)
James Watt by John Partridge (c. 1790)

Richard Guest pointed out that Watt's steam engine that drove the power looms was extremely popular with factory owners: "The increasing number of steam-looms is a certain proof of their superiority over the hand-looms. In 1818, there were in Manchester, Stockport, Middleton, Hyde, Stayley Bridge, and their vicinities, 14 factories, containing about 2,000 looms. In 1821, there were in the same neighbourhoods 32 factories, containing 5,732 looms. Since 1821, their number has still increased, and there are at present not less than 10,000 steam-looms at work in Great Britain." (26)

Boulton & Watt company had a virtual monopoly over the production of steam-engines. Watt charged his customers a premium for using his steam engines. To justify this he compared his machine to a horse. Watt calculated that a horse exerted a pull of 180 lb., therefore, when he made a machine, he described its power in relation to a horse, i.e. "a 20 horse-power engine". Watt worked out how much each company saved by using his machine rather than a team of horses. The company then had to pay him one third of this figure every year, for the next twenty-five years. (27)

Henry Brougham later recalled: "There was one quality, which most honourably distinguished him from too many inventors, and was worthy of all imitation, he was not only entirely free from jealously, but he exercised a careful and scrupulous self-denial, and was anxious not to appear, even by accident, as appropriating to himself that which he thought belonged to others." (28)

Lunar Society

James Watt became an important member of the Lunar Society of Birmingham. The group took this name because they used to meet to dine and converse on the night of the full moon. The group grew out of a friendship between Matthew Boulton and Erasmus Darwin and first began meeting as a group in 1768. Other members included Josiah Wedgwood, Joseph Priestley, James Brindley, Thomas Day, William Small, John Whitehurst, John Robison, Joseph Black, William Withering, John Wilkinson, Richard Lovell Edgeworth and Joseph Wright.

The historian, Jenny Uglow, has argued: "It has been said that the Lunar Society kick-started the industrial revolution. No individual or group can be said to change a society in such a way, and time and again one can see that if they hadn't invented or discovered something, someone else would have done it. Yet this small group of friends really was at the leading edge of almost every movement of its time in science, in industry and in the arts, even in agriculture. They were pioneers of the turnpikes and canals and of the new factory system. They were the group who brought efficient steam power to the nation." (29)

Watt deeply felt the loss of some of his friends from the Lunar Society. A number of Watt's friends died at the turn of the century. Josiah Wedgwood (1795), Joseph Black (1799), Erasmus Darwin (1802), Joseph Priestley (1804) and John Robison (1805). It is claimed that in retirement he was haunted by the fear that his mental faculties were failing. (30)

Watt's partner, Matthew Boulton, suffered from stones in the kidneys, and he told a friend: "My doctors say my only chance of continuing in this world depends on my living quiet in it." (31) He died aged 81 of kidney failure on 17th August 1809. Watt wrote that Boulton was "not only an ingenious mechanic, well skilled in all the practices of the Birmingham manufacturers, but possessed in a high degree the faculty of rendering any new invention of his own or others useful to the public, by organising and arranging the processes by which it could be carried on." (32)

James Watt died aged 73 at Heathfield in Handsworth, Birmingham, on 25th August 1819 and was buried beside Matthew Boulton in St Mary's Church on 2nd September 1819. He left over £60,000 (£81,000,000 in today's money) in his will to his family.

Primary Sources

(1) Jenny Uglow, The Lunar Men (2002)

Although no formal partnership agreement was drawn up, for his two-thirds share, Boulton agreed to bear all the costs of getting patents, carrying out experiments, providing stock, managing the workmen and making deals. But now that they were working together, he could see that they needed to invest time as well as capital: Watt's patent was good for only eight more years and that might not be long enough. If their investment was to pay off they needed a good spell free from competition to get the engineering right. Going straight for his goal, as always, Boulton set about extending the period of protection. Instead of applying for a new patent he used his well-honed lobbying skills to push a Private Bill through Parliament to extend the current patent for twenty-five years.

(2) Edward Baines, History of the Cotton Manufacture in Great Britain (1835)

The patent of 1769 did not include all Watt's improvements. He connected himself in 1775 with Mr Boulton, of Soho, Birmingham, a gentleman of wealth, enterprise, and mechanical talent; and, having made still further improvements in the steam engine, an Act of Parliament was passed the same year, vesting in him "the sole use and property of certain steam-engines of his invention, throughout the majesty's dominions," for the extraordinary term of twenty-five years... This prevented others from making steam-engines which contained improvements of their own.

(3) Robert Hart, speech in Glasgow on what he was told by James Watt (2nd November, 1857)

It was in the Green of Glasgow. I had gone to take a walk on a fine Sabbath afternoon. I had entered the Green by the gate at the foot of Charlotte Street - had passed the old washing-house. I was thinking upon the engine at the time, and had gone as far as the Herd's-house, when the idea came into my mind, that as steam was an elastic body it would rush into a vacuum, and if a communication was made between the cylinder and an exhausted vessel, it would rush into it, and might be there condensed without cooling the cylinder. I then saw that I must get quit of the condensed steam and injection water, if I used a jet as in Newcomon's engine. Two ways of doing this occurred to me. First, the water might be run off by a descending pipe, if an offlet could be got at the depth of 35 or 36 feet, and any air might be extracted by a small pump; the second was to make the pump large enough to extract both water and air." He continued, "I had not walked farther than the Golf-house when the whole thing was arranged in my mind.



(3) In 1775 the British government explained why it had passed an act that stopped companies for the next twenty-five years from producing steam-engines that were similar to the one made by James Watt.

James Watt has spent a great part of his fortune in making experiments to improve steam-engines... By producing mechanical power at less expense, and in more convenient forms, his engines may be of great use in many great manufactures.

(4) Edmund Kennedy, The Rise and Progress of the Cotton Trade (1795)

About this time (1790) Mr. Watt's steam-engine began to be understood and introduced into this part of England, and it was applied to the turning of spinning machines... In consequence of this, waterfalls became of less value; and, instead of carrying the people to the power, it was found preferable to place the power among the people, wherever it was most wanted.

(5) John Richard Green, The History of the English People (1874)

James Watt in 1765 transformed the Steam-Engine from a toy into the most wonderful instrument which human industry has ever had at its command... the steam engine raised Britain into the greatest manufacturing country that the world has seen.

(6) Richard Guest, A History of the Cotton Manufacture (1823) page 47

The increasing number of steam-looms is a certain proof of their superiority over the hand-looms. In 1818, there were in Manchester, Stockport, Middleton, Hyde, Stayley Bridge, and their vicinities, 14 factories, containing about 2,000 looms. In 1821, there were in the same neighbourhoods 32 factories, containing 5,732 looms. Since 1821, their number has still increased, and there are at present not less than 10,000 steam-looms at work in Great Britain.

(7) Gavin Weightman, The Industrial Revolutionaries (2007)

There is no doubt that Watt solved a great many problems and turned the lumbering old Newcomen engine into a much more streamlined machine which quickly won a worldwide reputation. But he was a cautious and conservative man and at every stage had to be cajoled into inventiveness by his partner Boulton. Left to his own devices, it is unlikely he would have produced much at all.

(8) Eric Hobsbawm, The Age of Revolution (1960)

Fortunately few intellectual refinements were necessary to make the Industrial Revolution. Its technical inventions were exceedingly modest, and in no way beyond the scope of intelligent artisans experimenting in their workshops, or of the constructive capacities of carpenters, millwrights, and locksmiths: the flying shuttle, the spinning jenny, the mule. Even its scientifically most sophisticated machine, James Watt's rotary steam-engine (1784), required no more physics than had been available for the best part of a century.
